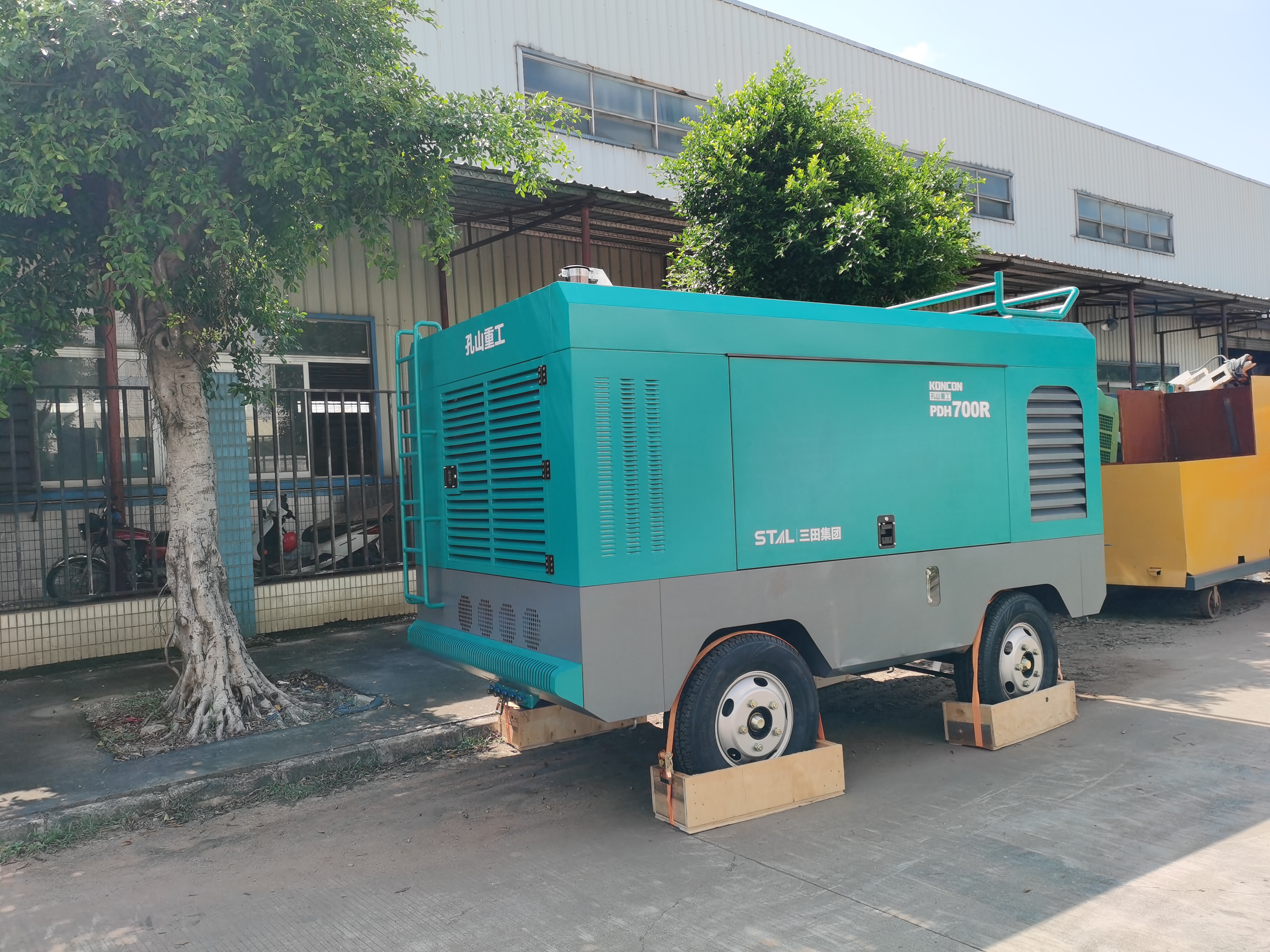

Medium and high wind pressure diesel displacement high pressure unit has the characteristics of small size, flexible movement, simple operation, low maintenance cost and high cost performance.



American TEWATT provides efficient single and double stage compression screw host, the most traditional and the latest technology perfect combination of unique design.

Always meet the requirements of high temperature, high cold, high dust, high altitude and other harsh environment. It is especially suitable for mining blasting, hydropower station construction, infrastructure construction, trenchless drill and other industries.

Konshan KONCON technical parameter table

Ordinal item

First, air compressor

1 Exhaust pressure bar 20

Working pressure range bar 0-20

Nominal volume flow m³/min 19

4 Maximum traction speed km/h 20

5 Maximum working Angle 15

6 Unit weight kg 4290

7 Length X width X height mm 3660X1900X2310

8 Wheel base mm 1800

9 Tire specification 7.5-16

10 Tire pressure kpa 770

11 Lubricating oil capacity L 110

12 Air Supply Valve Quantity Specifications 1-G1",1-G2"

13 Host compression series Dual-level

14 Transmission mode direct transmission

Two, three electric injection diesel engine

1 Model QSC8.3-C260-30

2 Rated speed/full load/no-load rpm 2200/1800/1300

3 Rated power KW 194

4 Cylinder number/cylinder diameter/stroke 6/114/135

5 Displacement L 8.3

6 Cooler liquid capacity L 42

7 Oil capacity L 18

8 Fuel tank capacity L 320

9 Working voltage of electric system V 24

10 Rated battery capacity A 200 x 2

Iii. Main configuration list

No. Name Unit Quantity Origin Manufacturer

1 Pressure sensor Part 1 USA MEAS

2 Air filter sleeve 2 USA Donaldson

3 Intake valve parts 1 Shanghai Spybo

4 compression host part 1 Ningbo Baos

5 minimum pressure valve parts 1 Shanghai Spybo

6 Oil core sleeve 1 Shanghai Santa Fima

7 Oil Filter set 1 Shanghai ultrafiltration

8 coupling sleeve 1 German Shengda

9 Temperature sensor 1 Shanghai OEM

10 Temperature control valve spool part 1 Ningbo BRIEF

11 Control Device 1 Zhejiang Jichao

12 Cooler Oil Parts 1 US OEM

13 Solenoid Valve Sleeve 1 Japan SMC

14 Cooler set 1 Jiangsu OEM

15 Oil and gas drum set 1 Ningbo Bosi

16 Diesel units 1 US Cummins
