Welcome to Guangxi Kongshan Machinery Equipment Co., Ltd.

KS500

KS500 crawler hydraulic core drilling rig

OnLine

TEL : +8618029255858

KS series full hydraulic drilling rig is a light, efficient, functional unit integration of core drilling equipment. The drill adopts the new hydraulic technology, supporting the large-torque hydraulic motor gearbox as the rotary power head, and the large cylinder diameter hydraulic cylinder propulsion. It is mainly used for the drilling of solid deposits, but also widely used in geological survey, engineering geology, oil and gas drilling, as well as railway, bridge, highway, water conservancy and hydropower and tunnel engineering drilling survey.

This drilling rig has the following structural features

1. The drill power head adopts hydraulic motor gearbox to enhance the ability to deal with accidents.

2, the positive and reverse direction of the power head rotation is sensitive and fast, easy to deal with accidents.

3. The power head gives a long stroke to the oil cylinder, which is conducive to improving the drilling efficiency and reducing the accident frequency of blockage and drilling.

4, the drill uses hydraulic leg fixed, with the characteristics of reliable fixation, simple adjustment, high speed stability.

5, the drilling rig installed power is large, strong power.

6, advanced drilling rig structure, reasonable integrated layout, with telescopic drill tower, reduce the labor intensity of workers.

7, drilling pressure table and hydraulic system table combined into one, the use of oil-filled shock-proof structure, simple and accurate scale value, long service life.

8, the hydraulic system adopts manual control and electromagnetic remote control, which is safe and reliable, sensitive and fast.

9, the drill can be high-speed drilling and low-speed high-torque drilling.

10, optional normally closed hydraulic chuck, convenient operation, flexible, effectively improve the efficiency of large drill.

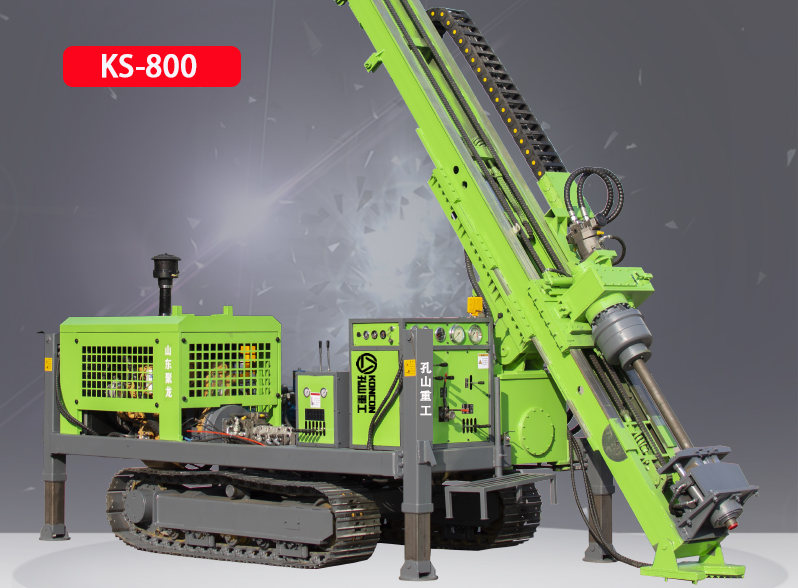

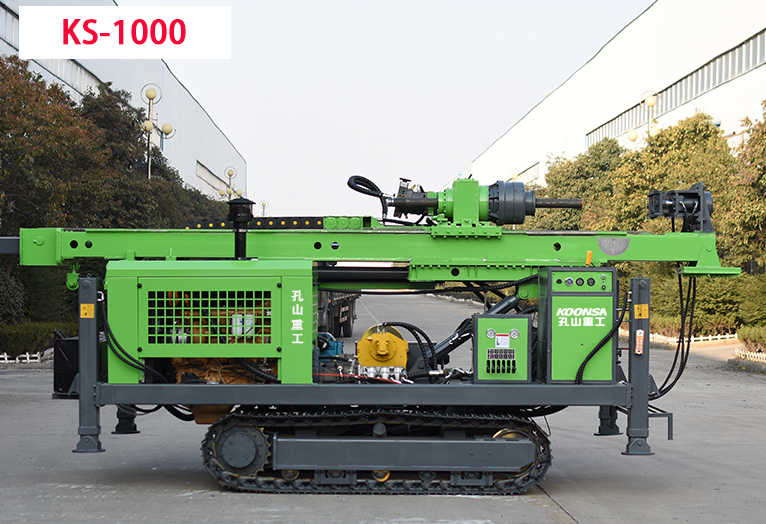

Table of the main technical parameters of the drilling rig





 Project name

Drill model

KS-500Q/KS-500

KS-800

KS-1000

Drilling depth (m)

500

800

1000

Drilling way

Hydraulic motor rotation, oil cylinder propulsion, mud drilling

Power specification (kW / rpm)

 92/2400

Yuchai four-cylinder engine

92/2400

Yuchai six-cylinder engine

129/2400

Weichai six-cylinder engine

Drilling rod specifications

BTW/NTW/HTW

BTW/NTW/HTW

BTW/NTW/HTW

drill pipe size (mm)

1500

1500/3000

3000

Power-head propulsion force (kN)

75/120

150

180

Power head lift force (kN)

100/240

300

360

Output speed (rpm)

high speed

0~1400

0~1400

0~1400

 low speed

**/0~650

0~650

0~650

Max. output torque (Nm)

1200/1400

1800

2600

Operating weight (kg)

1500/4500

6000



Overall machine size (mm)

2500*2000*16004500*1900*2300

4500*2100*2800

4500*2100*2800

Track climbing capacity of ()

可選履帶式/25

30

30

Walking speed (km/h)

2

2

2

動(dòng)力頭行程(mm)

1800/2000

3300

3300

絞車提升力(kN)

15

20

24

Drilling angle is ()

0~90

0~90

0~90

Mud pump (optional)

BW90/100/160

BW90/100/160

BW90/100/160
