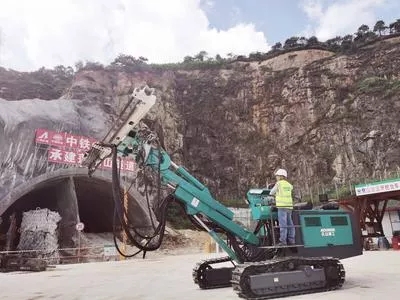

KS690 it is designed for rock drilling .drilling of anchor holes, blasting holes and probe holes of 33~66mm hole diameters,which is widely used in the field of full -section road tunnels, high-speed railway tunnels,national defence culverts, and underground mine mining.

It has the features of stable and high effciency,360°  omni-directional coverage of drilling holes,precision and smoothness,simple operation and convenient maitenance.

使用信息 USAGE INFORMATION

適用孔徑 Hole Diameter：Φ33-66mm

推進梁行程 Propulsion Length：3400mm

水平鉆孔高度Horizontal Drilling Height：5100mm

鑿巖機信息 ROCK DRILL INFORMATION

鑿巖機功率 Power：10kw

扭矩 Rotation Torque：480Nm

轉速 Rotation Speed：250r/min

提升力 Lifting Force：1.2T

沖擊頻率Impact Frequency：48hz

沖擊能Impact Energy：150J

釬尾螺紋Hammer Thread：T38

發動機參數 ENGINE PARAMETER

玉柴機器 Yuchai Machinery

Rated power:62.5kw

Fuel Tank Capacity : 90L

Optional:waterborne dust collection
